Akat (Posted 2005) [#1]

may u guys take a peek on this codes?? like something wrong but i dont know where? Strict Global g_ViewMode:Int Global currentL:Int, currentM:Int Global iXWinPos:Int, iYWinPos:Int Global iYAngle:Int, iYBegin:Int Global iXAngle:Int, iXBegin:Int Global iDisplayWidth:Int, iDisplayHeight:Int Global iMovingStatus:Int Global iAnimatingStatus:Int Global iResolution:Int Global scaleLevel:Double Global Quit:Byte currentM = 0 currentL = 0 iDisplayWidth = 640 iDisplayHeight = 480 iYAngle = 0 iYBegin = 0 iXAngle = 0 iXBegin = 0 iMovingStatus = 0 iAnimatingStatus = 0 iYWinPos = 10 iXWinPos = 10 g_ViewMode = GL_LINE iResolution = 64 scaleLevel = 1.0 bglCreateContext iDisplayWidth,iDisplayHeight,0,0,BGL_BACKBUFFER | BGL_DEPTHBUFFER While Not Quit initOpenGL displayScene keyboard FlushMem Wend End Function keyboard() If KeyHit(key_L) If currentL > 0 If Abs(currentM) = currentL If currentM < 0 Then currentM :+ 1 If currentM > 0 Then currentM :- 1 EndIf currentL :- 1 EndIf EndIf If KeyHit(Key_m) If currentM > 0 Or (currentM <= 0 And (-currentM < currentL)) Then currentM :- 1 EndIf If KeyHit(Key_R) If iResolution > 16 Then iResolution :- 1 EndIf If KeyHit(Key_Z) If scaleLevel > 0.1 Then scaleLevel :- 0.1 EndIf If KeyHit(Key_A) If iAnimatingStatus = 0 animateScene iAnimatingStatus = 1 Else iAnimatingStatus = 0 EndIf EndIf If KeyHit(Key_Y) If g_ViewMode = GL_FILL g_ViewMode = GL_LINE ElseIf g_ViewMode = GL_LINE g_ViewMode = GL_POINT ElseIf g_ViewMode = GL_POINT g_ViewMode = GL_FILL Else g_ViewMode = GL_FILL EndIf glPolygonMode GL_FRONT_AND_BACK,g_ViewMode EndIf If KeyHit(Key_K) currentL :+ 1 EndIf If KeyHit(Key_N) If currentM < currentL Then currentM :+ 1 EndIf If KeyHit(Key_T) Then iResolution :+ 1 If KeyHit(Key_Z) Then scaleLevel :+ 0.1 If KeyHit(Key_Q) Then Quit = True EndFunction Function animateScene() iYAngle :+ 2 If iYAngle >= 360 Then iYAngle = 0 EndFunction Function displayScene() Local glfMaterialColor:Float[] = [0.0,0.0,1.0,1.0] glClear GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT glMatrixMode GL_PROJECTION glLoadIdentity gluPerspective 60,1.3333,0.01,30 glMatrixMode GL_MODELVIEW glLoadIdentity gluLookAt 0.0,-3.0,0.0,0.0,0.0,0.0,0.0,0.0,1.0 glRotatef iXAngle,1.0,0.0,0.0 glRotatef iYAngle,0.0,0.0,1.0 glMaterialfv GL_FRONT_AND_BACK,GL_AMBIENT_AND_DIFFUSE,glfMaterialColor glEnable GL_COLOR_MATERIAL renderSH(iResolution,0.0,0.0,0.0,currentL,currentM,scaleLevel) bglSwapBuffers EndFunction Function initOpenGL() glEnable GL_DEPTH_TEST glEnable GL_COLOR_MATERIAL glShadeModel GL_SMOOTH glEnable GL_NORMALIZE glHint GL_PERSPECTIVE_CORRECTION_HINT,GL_NICEST glPolygonMode GL_FRONT_AND_BACK,GL_LINE glEnable GL_LIGHTING glEnable GL_LIGHT0 EndFunction Function renderSH(iSteps:Int,x:Double,y:Double,z:Double,l:Int,m:Int,scale:Double) Local i:Int, j:Int Local theta:Double, phi:Double Local step_theta:Double, step_phi:Double Local R:Double step_theta = Pi/iSteps step_phi = 2*Pi/iSteps glPushMatrix glTranslatef x,y,z glScalef scale,scale,scale For i = 0 Until iSteps theta = step_theta*i For j = 0 Until iSteps phi = step_phi*j glBegin GL_QUADS R = evaluateSH(l,m,theta,phi) glNormal3f R*Sin(phi)*Cos(theta),R*Sin(phi)*Sin(theta),R*Cos(phi) glVertex3f R*Sin(phi)*Cos(theta),R*Sin(phi)*Sin(theta),R*Cos(phi) R = evaluateSH(l,m,theta + step_theta,phi) glNormal3f R*Sin(phi)*Cos(theta + step_theta),R*Sin(phi)*Sin(theta + step_theta),R*Cos(phi) glVertex3f R*Sin(phi)*Cos(theta + step_theta),R*Sin(phi)*Sin(theta + step_theta),R*Cos(phi) R = evaluateSH(l,m,theta + step_theta,phi + step_phi) glNormal3f R*Sin(phi + step_phi)*Cos(theta + step_theta),R*Sin(phi + step_phi)*Sin(theta + step_theta),R*Cos(phi + step_phi) glVertex3f R*Sin(phi + step_phi)*Cos(theta + step_theta),R*Sin(phi + step_phi)*Sin(theta + step_theta),R*Cos(phi + step_phi) R = evaluateSH(l,m,theta,phi + step_phi) glNormal3f R*Sin(phi + step_phi)*Cos(theta),R*Sin(phi + step_phi)*Sin(theta),R*Cos(phi + step_phi) glVertex3f R*Sin(phi + step_phi)*Cos(theta),R*Sin(phi + step_phi)*Sin(theta),R*Cos(phi + step_phi) glEnd Next Next glPopMatrix EndFunction Function doubleFactorial:Int(x:Int) Local result:Int If x = 0 Or x = -1 Then Return 1 result = x x :- 2 While x > 0 result :* x x :- 2 Wend Return result EndFunction Function factorial:Int(x:Int) Local result:Int If x = 0 Or x = -1 Then Return 1 result = x x :- 1 While x > 0 result :* x x :- 1 Wend Return result EndFunction Function ALPStd:Double(x:Double,l:Int,m:Int) If l = m Then Return (-1^m)*doubleFactorial(2*m - 1)*(Sqr(1 - x*x)^m) If l = (m + 1) Then Return x*(2*m + 1)*ALPStd(x,m,m) Return (x*(2*l - 1)*ALPStd(x,l - 1,m) - (l + m - 1)*ALPStd(x,l - 2,m))/(l - m) EndFunction Function evaluateK:Double(l:Int,m:Int) Local result:Double result = ((2.0*l + 1.0)*factorial(l - m))/(4*Pi*factorial(l + m)) Return Sqr(result) EndFunction Function evaluateSH:Double(l:Int,m:Int,theta:Double,phi:Double) Local SH:Double = 0.0 If m = 0 SH = evaluateK(l,0)*ALPStd(Cos(theta),l,0) ElseIf m > 0 SH = Sqr(2)*evaluateK(l,m)*Cos(m*phi)*ALPStd(Cos(theta),l,m) Else SH = Sqr(2)*evaluateK(l,-m)*Sin(-m*phi)*ALPStd(Cos(theta),l,-m) EndIf Return SH EndFunction actually the result should be something like this... may u guys try it... because its not appearing right... btw, i converted it from C codes... i'll post u guys the C codes later..

ziggy (Posted 2005) [#2]

First of all, you're creating a 0x0 GL context, so the main window is 0x0 pixels!!!

Akat (Posted 2005) [#3]

oops... im sorry... the wrong codes i posted... now fixed (iDisplayWidth = 640 iDisplayHeight = 480)... but still the same wrong result.. where else?

Akat (Posted 2005) [#4]

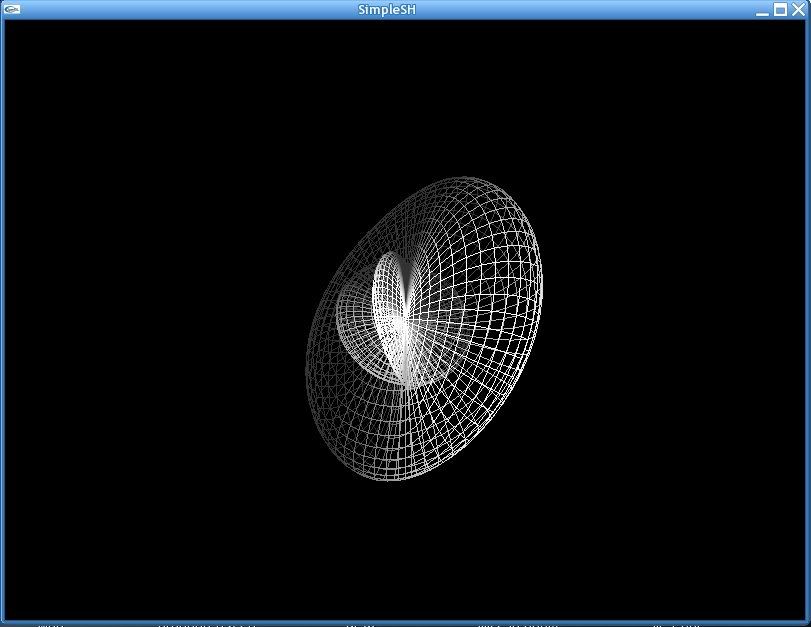

here the C codes: /* Include files */ #include "SimpleSH.h" #include "sh.h" /* OpenGL display mode: points, triangles and fill */ int g_ViewMode; /* Current indexes for the SH plotting */ int currentL, currentM; /* Window position */ int iXWinPos, iYWinPos; /* Rotation angles based on the mouse movements */ int iYAngle, iYBegin; int iXAngle, iXBegin; /* Window width and height */ int iDisplayWidth, iDisplayHeight; /* Mouse movement status */ int iMovingStatus; /* Animation flag */ int iAnimatingStatus; /* Number of triangles for the current SH displayed */ int iResolution; /* To scale up/down the SH plotting */ double scaleLevel; /* program's main entry point */ int main(int argc, char** argv) { /* Default values */ /* Initialize l and m indexes */ currentL = currentM = 0; /* Default resolution is 800 by 600*/ iDisplayWidth = 800; iDisplayHeight = 600; /* Rotation angles */ iYBegin = iYAngle = 0; iXBegin = iXAngle = 0; /* Mouse not moving by default */ iMovingStatus = 0; /* No animation by default */ iAnimatingStatus = 0; /* Initial window position */ iXWinPos = iYWinPos = 10; /* Display wireframe model by default */ g_ViewMode = GL_LINE; /* Default model resolution */ iResolution = 64; /* Default scale resolution */ scaleLevel = 1.0; /* Show credits */ showCredits(); /* Parse the command-line arguments */ parseArgs(argc, argv); /* Glut initialization */ glutInit(&argc, argv); /* Double buffering and RGB display */ glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGB); /* Window size */ glutInitWindowSize(iDisplayWidth, iDisplayHeight); /* Window initial position */ glutInitWindowPosition(iXWinPos, iYWinPos); /* Window creations */ glutCreateWindow("SimpleSH"); /* Initialize OpenGL settings */ initOpenGL(); /* Assign GLUT call-back functions */ glutDisplayFunc(displayScene); glutReshapeFunc(reshapeWindow); glutMouseFunc(mouseInput); glutMotionFunc(mouseMotion); glutKeyboardFunc(keyboard); /* Enter GLUT loop */ glutMainLoop(); } /* Keyboard function */ void keyboard(unsigned char key, int x, int y) { switch (key) { /* Decrease the value of the l index */ case 'l': if (currentL > 0) { if (abs(currentM) == currentL) { if (currentM < 0) currentM++; if (currentM > 0) currentM--; } currentL--; } printf(" l = %d - m = %d\t\r", currentL, currentM); glutPostRedisplay(); break; /* Increase the value of the l index */ case 'L': currentL++; printf(" l = %d - m = %d\t\r", currentL, currentM); glutPostRedisplay(); break; /* Decrease the value of the m index */ case 'm': if ((currentM > 0) || ((currentM <= 0) && (-currentM < currentL))) currentM--; printf(" l = %d - m = %d\t\r", currentL, currentM); glutPostRedisplay(); break; /* Increase the value of the m index */ case 'M': if (currentM < currentL) currentM++; printf(" l = %d - m = %d\t\r", currentL, currentM); glutPostRedisplay(); break; /* Decrease the resolution of the model. Minimum value is 16 */ case 'r': if (iResolution > 16) iResolution--; glutPostRedisplay(); break; /* Increase the resolution of the model */ case 'R': iResolution++; glutPostRedisplay(); break; /* Decrease the scale of the model. Minimum value is 0.1 */ case 'z': if (scaleLevel > 0.1) scaleLevel -= 0.1; glutPostRedisplay(); break; /* Increase the scale of the model */ case 'Z': scaleLevel += 0.1; glutPostRedisplay(); break; /* Toggle animation on/off */ case 'a': case 'A': if (iAnimatingStatus == 0) { glutIdleFunc(animateScene) ; iAnimatingStatus = 1 ; } else { glutIdleFunc(NULL) ; iAnimatingStatus = 0 ; } break ; /* Switch between the different display modes: points, triangles and fill */ case 'y': case 'Y': if (g_ViewMode == GL_FILL) g_ViewMode = GL_LINE; else if (g_ViewMode == GL_LINE) g_ViewMode = GL_POINT; else if (g_ViewMode == GL_POINT) g_ViewMode = GL_FILL; else g_ViewMode = GL_FILL; glPolygonMode(GL_FRONT_AND_BACK, g_ViewMode); glutPostRedisplay(); break ; /* Quit */ case 'q': case 'Q': case '\27': puts(""); exit(0); break; } } /* animates the scene */ void animateScene(void) { iYAngle += 2; if (iYAngle >= 360) iYAngle = 0; glutPostRedisplay(); } /* displays the scene */ void displayScene(void) { /* The color of the SH */ GLfloat glfMaterialColor[] = { 0.0f, 0.0f, 1.0f, 1.0f }; /* Clear the screen */ glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); /* Setup the view */ glMatrixMode(GL_PROJECTION); glLoadIdentity(); gluPerspective(60, 1.3333, 0.01, 30); glMatrixMode(GL_MODELVIEW); glLoadIdentity(); gluLookAt(0.0, -3.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0); /* Rotate the camera around the origin */ glRotatef(iXAngle, 1.f, 0.f, 0.f); glRotatef(iYAngle, 0.f, 0.f, 1.f); /* Assign material properties and render the SH for l and m indexes */ glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT_AND_DIFFUSE, glfMaterialColor); glEnable(GL_COLOR_MATERIAL); renderSH(iResolution, 0.0, 0.0, 0.0, currentL, currentM, scaleLevel); /* Swap the front and back buffers */ glutSwapBuffers(); } /* Called when the window is reshaped */ void reshapeWindow(int iWidth, int iHeight) { /* Local variables */ GLdouble gldAspect; gldAspect = (GLdouble) iWidth / (GLdouble) iHeight; glMatrixMode(GL_PROJECTION); glLoadIdentity(); gluPerspective(30.0, gldAspect, 0.01, 50.0); glViewport(0, 0, (GLsizei) iWidth, (GLsizei) iHeight); } /* Handles mouse input */ void mouseInput(int iButton, int iState, int iX, int iY) { switch (iButton) { /* Left button: camera rotation around the origin */ case GLUT_LEFT_BUTTON: if (iState == GLUT_DOWN) { iMovingStatus = 1; iYBegin = iY; iXBegin = iX; } break; /* Right button: switch on/off animation */ case GLUT_RIGHT_BUTTON: if (iState == GLUT_DOWN) { if (iAnimatingStatus == 0) { glutIdleFunc(animateScene) ; iAnimatingStatus = 1 ; } else { glutIdleFunc(NULL) ; iAnimatingStatus = 0 ; } } break; default: break; } } /* handles mouse input */ void mouseMotion(int iX, int iY) { /* Calculate the camera rotation angles based on the mouse movement */ if (iMovingStatus == 1) { iYAngle += (iX - iXBegin); iXAngle += (iY - iYBegin); iYBegin = iY; iXBegin = iX; glutPostRedisplay(); } } /* sets the OpenGL environment */ void initOpenGL(void) { /* Enable depth testing */ glEnable(GL_DEPTH_TEST); /* Allow color */ glEnable(GL_COLOR_MATERIAL); /* Enable Smooth Shading */ glShadeModel(GL_SMOOTH); /* Enable rescale of normals after transform */ glEnable(GL_NORMALIZE); /* Really Nice Perspective Calculations */ glHint(GL_PERSPECTIVE_CORRECTION_HINT, GL_NICEST); /* Rendering mode */ glPolygonMode(GL_FRONT_AND_BACK, GL_LINE); /* Add a light to the scene */ glEnable(GL_LIGHTING); glEnable(GL_LIGHT0); } /* Render the SH for the given l and m indexes. Scale is used to scale the SH. iSteps is used asthe resolution of the SH. */ void renderSH(int iSteps, double x, double y, double z, int l, int m, double scale) { /* Loop indexes */ int i, j; /* Angles in spherical coordinates */ double theta, phi; /* Angles variations in spherical coordinates */ double step_theta, step_phi; /* The radius is a function of phi and theta */ double R; /* Initialize angles variations */ step_theta = (PI) / iSteps; step_phi = (2 * PI) / iSteps; glPushMatrix(); /* Translate the SH to (x,y,z) */ glTranslatef(x, y, z); /* Uniform scalig of the SH */ glScalef(scale, scale, scale); /* Loop around the unit sphere in spherical coordinates */ for (i = 0; i < iSteps; i++) { /* Current value of theta */ theta = step_theta * i; /* Loop for phi */ for (j = 0; j < iSteps; j++) { /* Current value of theta */ phi = step_phi * j; /* Draw quads */ glBegin(GL_QUADS); /* First vertex */ R = evaluateSH(l, m, theta, phi); glNormal3f(R * sin(phi) * cos(theta), R * sin(phi) * sin(theta), R * cos(phi)); glVertex3f(R * sin(phi) * cos(theta), R * sin(phi) * sin(theta), R * cos(phi)); /* Second vertex */ R = evaluateSH(l, m, theta + step_theta, phi); glNormal3f(R * sin(phi) * cos(theta + step_theta), R * sin(phi) * sin(theta + step_theta), R * cos(phi)); glVertex3f(R * sin(phi) * cos(theta + step_theta), R * sin(phi) * sin(theta + step_theta), R * cos(phi)); /* Third vertex */ R = evaluateSH(l, m, theta + step_theta, phi + step_phi); glNormal3f(R * sin(phi + step_phi) * cos(theta + step_theta), R * sin(phi + step_phi) * sin(theta + step_theta), R * cos(phi + step_phi)); glVertex3f(R * sin(phi + step_phi) * cos(theta + step_theta), R * sin(phi + step_phi) * sin(theta + step_theta), R * cos(phi + step_phi)); /* Fourth vertex */ R = evaluateSH(l, m, theta, phi + step_phi); glNormal3f(R * sin(phi + step_phi) * cos(theta), R* sin(phi + step_phi) * sin(theta), R * cos(phi + step_phi)); glVertex3f(R * sin(phi + step_phi) * cos(theta), R* sin(phi + step_phi) * sin(theta), R * cos(phi + step_phi)); glEnd(); } } glPopMatrix(); } /* Display the usage of the program */ void showUsage(void) { printf("\n Usage: SimpleSH [options]\n\n"); printf(" Example: SimpleSH -l 2 -m 2\n\n"); printf(" Options:\n"); printf(" -w/--width integer width of the display window\n"); printf(" -h/--height integer height of the display window\n"); printf(" -l/--l integer Band level\n"); printf(" -m/--m integer Secondary level\n"); printf(" -?/--help this help message\n\n"); } /* Show the different credits */ void showCredits(void) { printf(VERSION_CREDITS); puts(""); } /* Show the help */ void help(void) { showUsage(); exit(-1); } /* Parse the command-line arguments and assign global variables accordingly */ void parseArgs(int argc, char **argv) { int i; for (i=1; i<argc; ++i) { if (argv[i][0]=='-') { if ((strcmp(argv[i],"-?")==0) || (strcmp(argv[i],"--help")==0) || (strcmp(argv[i],"/?")==0)) { help(); } else if ((strcmp(argv[i],"-w")==0) || (strcmp(argv[i],"--width")==0)) { ++i; if (i >= argc) { help(); } if ((iDisplayWidth = atoi(argv[i])) <= 0) { printf(" Display width must be strictly positive.\n"); exit(-1); } } else if ((strcmp(argv[i],"-l")==0) || (strcmp(argv[i],"--l")==0)) { ++i; if (i >= argc) { help(); } if ((currentL = atoi(argv[i])) < 0) { printf(" l must be positive.\n"); exit(-1); } } else if ((strcmp(argv[i],"-m")==0) || (strcmp(argv[i],"--m")==0)) { ++i; if (i >= argc) { help(); } currentM = atoi(argv[i]); if (abs(currentM) > currentL) { printf(" l must be greater or equal to m.\n"); exit(-1); } } else if ((strcmp(argv[i],"-h")==0) || (strcmp(argv[i],"--height")==0)) { ++i; if (i >= argc) { help(); } if ((iDisplayHeight = atoi(argv[i])) <= 0) { printf(" Display height must be strictly positive.\n"); exit(-1); } } } } } /* Required include file */ #include "sh.h" /* Calculate the double factorial of x */ int doubleFactorial(int x) { int result; if (x == 0 || x == -1) return (1); result = x; while ((x -= 2) > 0) result *= x; return (result); } /* Calculate the factorial of x */ int factorial(int x) { int result; if (x == 0 || x == -1) return (1); result = x; while ((x -= 1) > 0) result *= x; return (result); } /* Calculate the Associated Legendre Polynomial of index l and m at point x*/ double ALPStd(double x, int l, int m) { if (l == m) return (pow(-1, m) * doubleFactorial(2 * m - 1) * pow(sqrt(1 - x * x), m)); if (l == m + 1) return (x * (2 * m + 1) * ALPStd(x, m, m)); return ((x * (2 * l - 1) * ALPStd(x, l - 1, m) - (l + m - 1) * ALPStd(x, l - 2, m)) / (l - m)); } /* Calculate the K constant used in the spherical harmonic calculation */ double evaluateK(int l, int m) { double result; result = ((2.0 * l + 1.0) * factorial(l - m)) / (4 * PI * factorial(l + m)); return sqrt((result)); } /* Calculate the spherical harmonic for l and m at angles theta and phi*/ double evaluateSH(int l, int m, double theta, double phi) { double SH = 0.0; if (m == 0) { SH = evaluateK(l, 0) * ALPStd(cos(theta), l, 0); } else if (m > 0) { SH = SQRT2 * evaluateK(l, m) * cos(m * phi) * ALPStd(cos(theta), l, m); } else { SH = SQRT2 * evaluateK(l, -m) * sin(-m * phi) * ALPStd(cos(theta), l, -m); } return SH; }
